Slotting Machine

Slotting Machine
Slotting Machine
Product Code : 11
Brand Name : Kirti
Product Description

Through the meticulousness of our competent professionals, we are able to manufacture, supply and export optimum quality Slotting Machine. This reciprocating machine is equipped with a vertical axis tool, which helps in cutting operations while the stroke is getting downward. Constructed using  high-grade steels, our machine is considered to be a vertical shaper while the main part remains base, rotary table and column. Available in different models and specifications, our Slotting Machine is known for high cutting capacity, rigid construction, corrosion resistance and longer service life.

 Stroke 110 mm to 250 mm

HYDRAULIC HACKSAW MACHINE

Size 14" (350 X 175) 18" (450 X 250) 18" (450 X 250)
Cutting Capacity ( Round)
(Square)
175
150
250
200
400
300
Blade 350 450 600
Motor H.P. 1 1 3
"V" Belt B 51 X A 31 B 56 X A 34 B 64 X A 41
Floor Space 450 X 1200 50 X 1350 750 X 1650
Height 875 950 1100
STANDARD EQUIPMENTS : Mechanical Coolant Pump, Motor Pulley, Control Switch, Electrical internal Writing.
EXTRA EQUIPMENTS : Adjustable Bar Stand, "V" Belt, Electric Motor

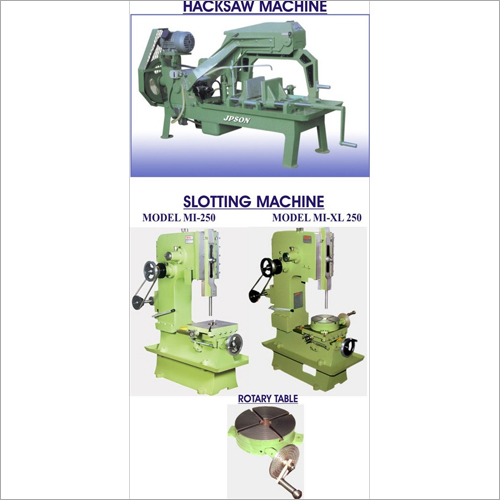

SLOTTING MACHINE

MODEL MI-250   MI-XL 250   M-150
Working Stroke 10mm TO 250mm   10mm TO 250mm   10mm TO 150mm
Longitudinal Traverse    245mm   245mm  125mm
Cross Traverse 85mm  85mm  75mm
Speed Adjustment 3 Speed   3 Speed   3 Speed
Ram Adjustment  UPTO 250mm   UPTO 250mm   UPTO 150 mm
Motor Required  1.5 H.P.   1.5 H.P.   1 H.P.
A- Distance from Body to Ram 310mm  310mm  200mm
B- Distance from Body to  T slot Slide 370mm  370mm 330mm
C- T-SLOT Table Size 280mm X 330 mm   280mm X 330 mm   280mm X 330mm

Standard Accessories : Boring Bar gray  B-Section Motor Pulley
Extra Accessories      :   Rotary Table with 36:1 Ratio Diameter 250mm
  Electric Motor gray Switch
  True Chuck gray V-Belts
