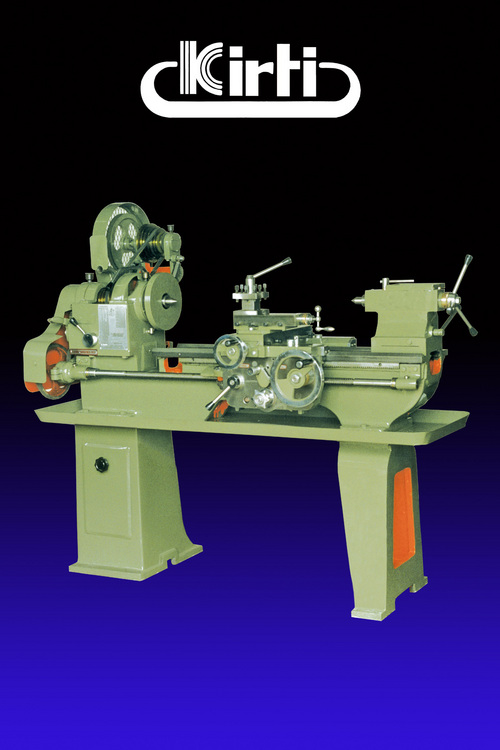

Light Duty Lathe Machine

Light Duty Lathe Machine
Light Duty Lathe Machine
Product Code : 23
Brand Name : KIRTI
Product Description

Light Duty Lathe Machine

Leveraged by a substantial foothold in the industry, we are manufacturing, supplying and exporting Light Duty Lathe Machine. This application provides various light duty solutions for variegated manufacturing aids like, sliding and screw cutting operations. In order to fulfill our commitment towards providing applications that meet with the international standards, we are mobilizing high-end technologies and latest machines. Our offered Light Duty Lathe Machine is fabricated with premium raw materials that are procured from our reliable market vendors and offered in different specifications, 4.5 feet , 5'-03" and 6 feet.

We have supply Light duty lathe machine in 4.5 feet , 5'-03" and 6 feet also at super quality and best price. KIRTI brand also manufacture heavy duty lathe machine.

Technical Specifications:


MODEL LIGHT DUYT LIGHT DUTY MIDIUM DUTY MIDIUM DUTY
1 Length of Bed 1371 mm 1600 mm 1525 mm 1828 mm
2 Width of Bed 235 mm 235 mm 266 mm 266 mm
3 Height of Centre 165 mm 165 mm 203 mm 203 mm
4 Admit Bitween Centre 710 mm 935 mm 685 mm 990 mm
5 Swing over Bed 317 mm 317 mm 380 mm 380 mm
6 Swing in Bed 495 mm 495 mm 585 mm 585 mm
7 Spindle Bore 40 mm 40 mm 50 mm 50 mm
8 No. of Spindle Speed 8 8 8 8
9 Cross Slide Travel 203 mm 203 mm 240 mm 240 mm
10 Top Slide Travel 100 mm 100 mm 100 mm 100 mm
11 Tail Stock Spindle Diameter 38 mm 38 mm 50 mm 50 mm
12 Spindle Travel 114 mm 114 mm 127 mm 127 mm
13 Mores Taper MT3 MT3 MT4 MT4
14 Leading Screw 4 TPI 4 TPI 4 TPI 4 TPI
15 Power H.P.1440 RPM 1 H.P 1 H.P 2 H.P 2 H.P
16 Machine Size (L X W X H) 60"X28"X51" 69"X28"X51" 67"X28"X55" 69"X28"X55"
17 Approx Weight 450 kg. 525 kg. 800 kg. 875 kg.
